    Wall Spike

    Wall Spikes are a simple yet effective method of enhancing the security of an existing wall or security fence. The wall spikes are easy to install and come in a variety of coatings or finishes.

    • Follows Contours of Wall
    • Neat Appearance
    • Easy to Install
    • Low Cost
    • Effective Intrusion Deterrent

    Wall Spikes(Big Size)

    Material:Galvanized zinc steel plate ,stainless steel plate ,Gal+Polyester coating,color can be desighed according to the customers'need .
    Production process :The goods ,here we called "wall spike" was  produced through an special die with skill of one-time molding by using ourself-developed automatic production equipment.The bending strength is greatly increased by use of ribs on the bend .Also the protect function was improved .The productivity and quality are more superiors than manual when using our machines .Rate of qualified  products can catch up to 98%.
    Characterristics:With good protect function,beautiful appearance, easy to install ,economical cost.

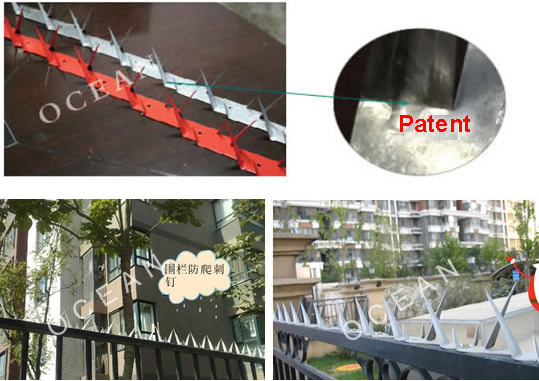

    Application :Gardens and apartment, offical buildings,prison ,border by installed on the wall or steel fence with expansion screw .
    Thickness :2mm
    Length :1m,1.25m,1.5m,2m(can adjusting depends on request)
    Packing:Carton box +pallet (30 pieces per carton)

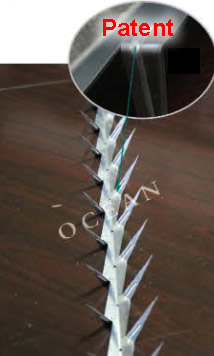

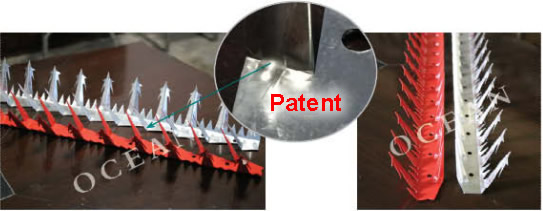

    The use of ribs on the bend have greatly improved the bending strengh,not east to fold and break off, whice have been national patented .(Patent NO:2015204324207)

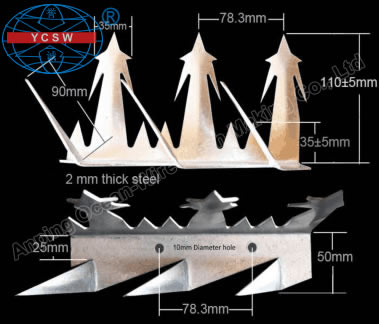

    HR-A1 STYLE BIG WALL SPIKE(HAVE STOCKS)
    Thickness: 2mm
    Weight: 1.75kg/pcs
    Barb Length: 110mm
    Barb Spcaing: 78.3mm
    Bottom Width: 50mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: 30pcs/carton
    Length: As your required.
    Normal Length: 1.25m; 1.28m.

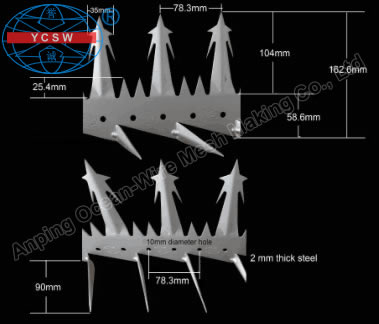

    HR-A2 STYLE BIG WALL SPIKE(HAVE NO STOCKS)
    Thickness: 2mm
    Weight: 1.75kg/pcs
    Barb Length: 104mm
    Barb Spcaing: 78.3mm
    Bottom Width: 162.6mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: Carton
    Length: As your required.
    Normal Length: 1.25m.

    HR-A3 STYLE BIG WALL SPIKE(HAVE NO STOCKS)
    Thickness: 2mm
    Weight: 1.75kg/pcs
    Barb Length: 104mm
    Barb Spcaing: 78.3mm
    Bottom Width: 162.6mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: Carton
    Length: As your required.
    Normal Length: 1.25m.




    Wall Spikes(Medium Size)
    Material:Galvanized zinc steel plate ,stainless steel plate ,Gal+Polyester coating,color can be desighed according to the customers'need .

    Production process :The goods ,here we called "wall spike" was  produced through an special die with skill of one-time molding by using ourself-developed automatic production equipment.The bending strength is greatly increased by use of ribs on the bend .Also the protect function was improved .The productivity and quality are more superiors than manual when using our machines .Rate of qualified  products can catch up to 98%.
    Characterristics:With good protect function,beautiful appearance, easy to install ,economical cost.
    Application :Gardens and apartment, offical buildings,prison ,border by installed on the wall or steel fence with expansion screw .
    Thickness :2mm
    Length :1m,1.25m,1.5m,2m(can adjusting depends on request)
    Packing:Carton box +pallet (40 pieces per carton)
    The use of ribs on the bend have greatly improved the bending strengh,not east to fold and break off, whice have been national patented .(Patent NO:2015204324207)

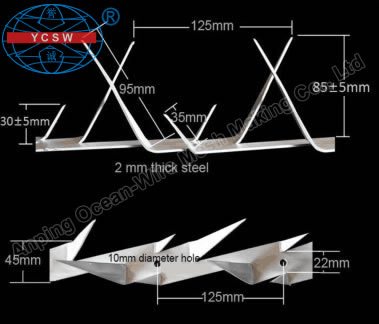

    HR-B1 STYLE MEDIUM WALL SPIKE(HAVE STOCKS)
    Thickness: 2mm
    Weight: 0.85kg/pcs
    Barb Length: 95mm
    Barb Spcaing: 125mm
    Bottom Width: 45mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: 60pcs/carton
    Length: As your required.
    Normal Length: 1.25m.

    HR-B2 STYLE MEDIUM WALL SPIKE(HAVE STOCKS)
    Thickness: 2mm
    Weight: 1.13kg/pcs
    Barb Length: 95mm
    Barb Spcaing: 136mm
    Bottom Width: 60mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: 40pcs/carton
    Length: As your required.
    Normal Length: 1.28m.

    Wall Spikes(Small Size)

    Material:Galvanized zinc steel plate ,stainless steel plate ,Gal+Polyester coating,color can be desighed according to the

     customers'need .


    Production process :The goods ,here we called "wall spike" was  produced through an special die with skill of one-time molding by

     using ourself-developed automatic production equipment.The bending strength is greatly increased by use of ribs on the bend .Also the protect function was improved .The productivity and quality are more superiors than manual when using our machines .Rate of qualified  products can catch up to 98%.
    Characterristics:With good protect function,beautiful appearance, easy to install ,economical cost.
    Application :Gardens and apartment, offical buildings,prison ,border by installed on the wall or steel fence with expansion screw .
    Thickness :0.8-1.0mm
    Length :1m,1.25m,1.5m,2m(can adjusting depends on request)
    Packing:Carton box +pallet (30 pieces per carton)
    The use of ribs on the bend have greatly improved the bending strengh,not east to fold and break off, whice have been national patented .(Patent NO:2015204324207)

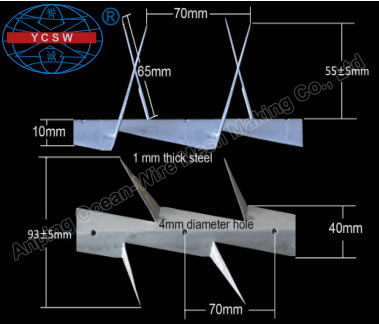

    HR-C1 STYLE SMALL WALL SPIKE(HAVE STOCKS)
    Thickness: 1mm
    Weight: 0.38kg/pcs
    Barb Length: 65mm
    Barb Spcaing: 70mm
    Bottom Width: 40mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: 60pcs/carton
    Length: As your required.
    Normal Length: 1.19m; 1.25m.

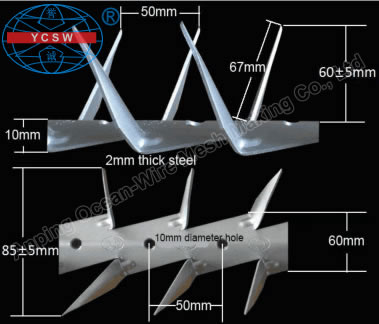

    HR-C2 STYLE SMALL WALL SPIKE(HAVE STOCKS)
    Thickness: 2mm
    Weight: 1.15kg/pcs
    Barb Length: 67mm
    Barb Spcaing: 50mm
    Bottom Width: 60mm
    Material: Hot Galvanized; PVC; Electrophoretic; Stainless steel 304.
    Packing: 20pcs/carton
    Length: As your required.
    Normal Length: 1.25m.

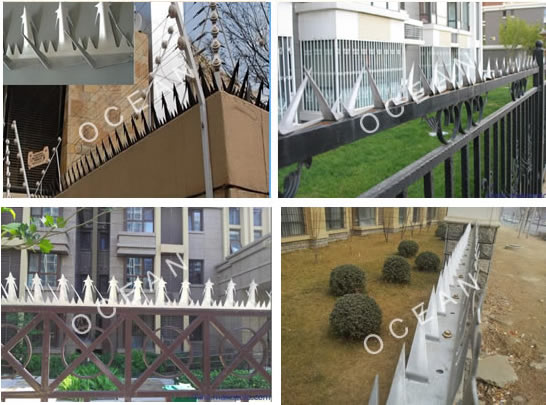

    Wall Spike Images:
